OVERVIEW
Air Diverter systems are designed carefully to Manage cooling requirements of side airflow Equipments, such as Cisco Nexus switch. The biggest challenge in the Data Centre will be managing cross airflow, This will create thermal short circuits and hot air blockages.

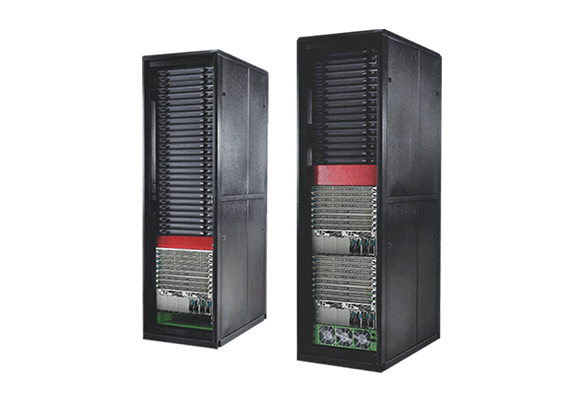

NetRack after carefully studying and understanding the challenge designed 2 systems Pair one for cold air suction and other for Hot air Exhaust, Powder coated in Blue ( Cold air) Red ( Hot air) for identification.
- Air Diverter Kit/Passive
- Air Diverter Kit/Active
- Air Diverter Frame/Passive
- Air Diverter Frame/Active
In passive The COLD AIR SUCTION IS FROM FRONT SIDE AND HOT AIR EXHAUST AT BACK SIDE by equipment fans. In active, COLD AIR SUCTION IS FROM FRONT SIDE AND HOT AIR EXHAUST AT BACK SIDE by Air diverter Kit/ Frame FANS along with equipment fans to enhance air flow... Racks are manufactured with highest quality standards under stringent ISO 9001 | ISO 14001 | ISO 27001 | ISO 45001 Manufacturing & Quality management system.
Technical Specification
Air Diverter Solution
| Model Matrix & Dimensions | |
|---|---|
| Description | Part No |
| Universal Air Diverter Kit/2U/ SET OF 2/ Passive/600X800 | UADK-001-2-P-600800 |
| Universal Air Diverter Kit/2U/ SET OF 2/ Passive/600X1000 | UADK-001-2-P-6001000 |
| Universal Air Diverter Kit/2U/ SET OF 2/ Passive/800X800 | UADK-001-2-P-800800 |
| Universal Air Diverter Kit/2U/ SET OF 2/ Passive/800X1000 | UADK-001-2-P-8001000 |
| Universal Air Diverter Kit/3U/ SET OF 2/ Active/540CFM/600X800 | UADK-001-2-A-540-600800 |
| Universal Air Diverter Kit/3U/ SET OF 2/ Active/540CFM/600X1000 | UADK-001-2-A-540-6001000 |
| Universal Air Diverter Kit/3U/ SET OF 2/ Active/540CFM/800X800 | UADK-001-2-A-540-800800 |
| Universal Air Diverter Kit/3U/ SET OF 2/ Active/540CFM/800X1000 | UADK-001-2-A-540-8001000 |
Air Diverter Frame
| Model Matrix & Dimensions | |
|---|---|
| Description | Part No |
| Universal Air diverter Frame/42U/6 Inch/ SET OF 2 | UADF-001-2-P-42 |
| Universal Air diverter Frame/45U/6 Inch/ SET OF 2 | UADF-001-2-P-45 |
| Universal Air diverter Frame/48U/6 Inch/ SET OF 2 | UADF-001-2-P-48 |
| Universal Air diverter Frame/42U/8 Inch/ SET OF 2/Active/1600CFM | UADF-001-2-A-1600 |
| Universal Air diverter Frame/45U/8 Inch/ SET OF 2/Active/1600CFM | UADF-001-2-A-1600 |
| Universal Air diverter Frame/48U/8 Inch/ SET OF 2/Active/1600CFM | UADF-001-2-A-1600 |
