OVERVIEW

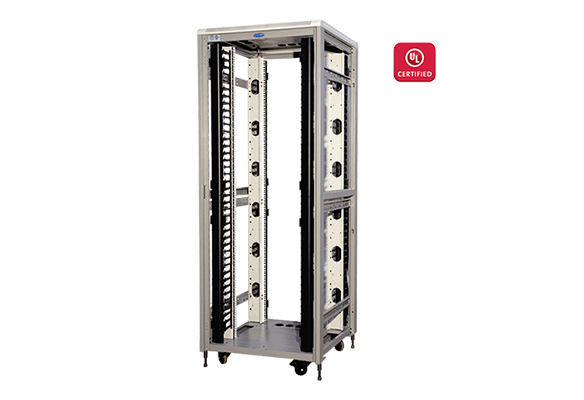

NRS Series standard for Racks configuration will be welded frame with 4 No. Pillars made of formed steel profile welded to top and bottom ribbed / reinforced frame additionally supported depth wise by 6 No depth rail 4 folded profile. Free standing on floor with 4 No. casters wheels with 2 Nos. with brakes and 2 Nos. without brakes & with levelers OR plinth.
NRA Series standard for Racks configuration will be bolted frame with 4 No. Pillars made of aluminium extruded profile bolted to top and bottom ribbed / reinforced frame additionally supported depth wise by 6 no depth rail 4 folded profile. Free standing on floor with 4 No casters wheels with 2 Nos. with brakes and 2 Nos. without brakes & with levelers OR plinth.
Available in 42 RU Variants with 800,1000 & 1200 Depth configurations and 800 Width configurations.
Technical Specification
| Technical Data: | |
|---|---|
| Basic Frame | NRA - Composite (Aluminium Section & Steel), NRS - Steel folded |
| Construction | NRA - CKD Type, NRS - Welded OR CKD design |
| Top & Bottom Cover | Bolted to Frame with Cable entry exit cut outs |
| 19 " Mounting Angle | Formed Steel |
| Std. Equipment Mounting | DIN Std. 10mm Square Slots |
| Standard Finish | Powder Coated |
| Standard Colour | Grey & Off white OR Black |
| Standard Mounting | Caster wheels (2 with Brake & 2 without Brake) OR Levelers OR Plinth. |
| Rack Standard | Conforms to DIN 41494 or equivalent standard |
| Static Load | 750 Kgs with casters. 1250 Kgs with levelers /Plinth |
Features & Accessories
Features
- Conforms to DIN 41494 or Equivalent EIA / ISO / EN / CEA Standard
- Adjustable mounting depth
- 4 No Adjustable, 19" verticals with Punched 10 mm Square Hole and Universal 12.7mm-15.875mm-15.875mm alternating hole pattern offers greater mounting flexibility, maximizes usable mounting space.
- Numbered U positions
- State-of-the-art manufacturing methods provide the best product quality and fastest delivery in the industry
- 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
- Powder coated finish with Seven tank pretreatment process meeting ASTM standard
- Grounding & Bonding Options
- Fan module Mount Provision on top Cover
Accessories
- Fixed Shelf
- Cantilever Shelf
- Sliding Shelf
- Key Board Shelf
- Power Distribution Units
- Cable Oragnisers
- Fans and Fan Modules
- Rack Ground Kit
- Plinth
- Casters
- Levellers
- Cable Basket
