OVERVIEW

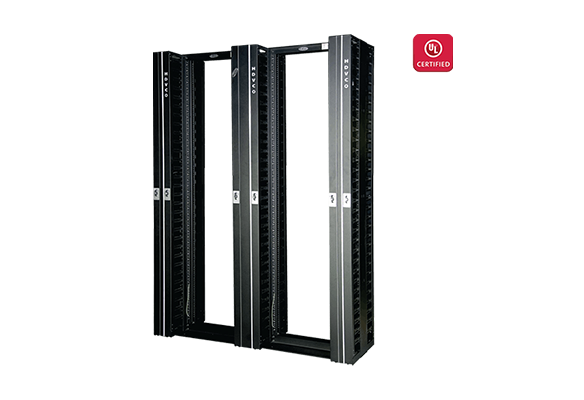

HDVCO Specially designed to meet the challenges of high density cable management due to increase of cable volume and more due to introduction of angular jack panel.
Cable organizer frame manufactured out of steel sheet punched, formed, welded and Powder coated and Doors made of aluminum sheet punched formed and powder coated with highest quality standards under stringent ISO 9001 | ISO 14001 | ISO 27001 | ISO 45001 Manufacturing & Quality management system to ensure highest quality product.
Standard configuration will be 6 Inch, 8 Inch, 12 Inch & 15 Inch with unique double hinge door on Front & Back, ABS semicircular finger module & ABS spools for cable management. Available in Front & Front & Back Variants.
Technical Specification
| Model Matrix & Dimensions | |||||
|---|---|---|---|---|---|
| Description | Part No. | H | h | W(Inch) | D(Inch) |
| High Density Vertical Cable Organiser/Type1/6 inch/Front/22U | MDVCO-6-F-22 | 1125 | 22U | 6 | 10-INCH |
| High Density Vertical Cable OrganiserType1/6 inch/Front & Back/ 22U | MDVCO-6-FB-22 | 1125 | 22U | 6 | 20-INCH |
| High Density Vertical Cable Organiser/Type1/6 inch/Front/36U | MDVCO-6-F-36 | 1747 | 36U | 6 | 10-INCH |
| High Density Vertical Cable OrganiserType1/6 inch/Front & Back/ 36U | MDVCO-6-FB-36 | 1747 | 36U | 6 | 20-INCH |
| High Density Vertical Cable Organiser/Type1/6 inch/Front/42U | MDVCO-6-F-42 | 2013 | 42U | 6 | 10-INCH |
| High Density Vertical Cable OrganiserType1/6 inch/Front & Back/42U | MDVCO-6-FB-42 | 2013 | 42U | 6 | 20-INCH |
| High Density Vertical Cable Organiser/Type1/6 inch/Front/45U | MDVCO-6-F-45 | 2147 | 45U | 6 | 10-INCH |
| High Density Vertical Cable OrganiserType1/6 inch/Front & Back/45U | MDVCO-6-FB-45 | 2147 | 45U | 6 | 20-INCH |
| High Density Vertical Cable Organiser/Type1/6 inch/Front/48U | MDVCO-6-F-48 | 2280 | 48U | 6 | 10-INCH |
| High Density Vertical Cable OrganiserType1/6 inch/Front & Back/48U | MDVCO-6-FB-48 | 2280 | 48U | 6 | 20-INCH |
| High Density Vertical Cable Organiser/Type1/6 inch/Front/52U | MDVCO-6-F-52 | 2458 | 52U | 6 | 10-INCH |
| High Density Vertical Cable OrganiserType1/6 inch/Front & Back/52U | MDVCO-6-FB-52 | 2458 | 52U | 6 | 20-INCH |
| High Density Vertical Cable Organiser/6 inch/Front/36U | HDVCO-6-F-36 | 1747 | 36U | 6 | 10-INCH |
| High Density Vertical Cable Organiser/6 inch/Front& Back/36U | HDVCO-6-FB-36 | 1747 | 36U | 6 | 20-INCH |
| High Density Vertical Cable Organiser/6 inch/Front/42U | HDVCO-6-F-42 | 2013 | 42U | 6 | 10-INCH |
| High Density Vertical Cable Organiser/6 inch/Front & Back/42U | HDVCO-6-FB-42 | 2013 | 42U | 6 | 20-INCH |
| High Density Vertical Cable Organiser/6 inch/Front/45U | HDVCO-6-F-45 | 2147 | 45U | 6 | 10-INCH |
| High Density Vertical Cable Organiser/6 inch/Front & Back/45U | HDVCO-6-FB-45 | 2147 | 45U | 6 | 20-INCH |
| High Density Vertical Cable Organiser/6 inch/Front/48U | HDVCO-6-F-48 | 2280 | 48U | 6 | 10-INCH |
| High Density Vertical Cable Organiser/6 inch/Front & Back/48U2 | HDVCO-6-F-48 | 2280 | 48U | 6 | 20-INCH |
| High Density Vertical Cable Organiser/6 inch/Front/52U | HDVCO-6-F-52 | 2458 | 52U | 6 | 10-INCH |
| High Density Vertical Cable Organiser/6 inch/Front & Back/52U | HDVCO-6-FB-52 | 2458 | 52U | 6 | 20-INCH |
| High Density Vertical Cable Organiser/8 inch/Front/22U | HDVCO-8-F-22 | 1125 | 22U | 8 | 10-INCH |
| High Density Vertical Cable Organiser/8 inch/Front & Back/22U | HDVCO-8-FB-22 | 1125 | 22U | 8 | 20-INCH |
| High Density Vertical Cable Organiser/8 inch/Front/36U | HDVCO-8-F-36 | 1147 | 36U | 8 | 10-INCH |
| High Density Vertical Cable Organiser/8 inch/Front & Back/36U | HDVCO-8-FB-36 | 1147 | 36U | 8 | 20-INCH |
| High Density Vertical Cable Organiser/8 inch/Front/42U | HDVCO-8-F-42 | 2013 | 42U | 8 | 10-INCH |
| High Density Vertical Cable Organiser/8 inch/Front & Back/42U | HDVCO-8-FB-42 | 2013 | 42U | 8 | 20-INCH |
| High Density Vertical Cable Organiser/8 inch/Front/45U | HDVCO-8-F-45 | 2147 | 45U | 8 | 10-INCH |
| High Density Vertical Cable Organiser/8 inch/Front & Back/45U | HDVCO-8-FB-45 | 2147 | 45U | 8 | 20-INCH |
| High Density Vertical Cable Organiser/8 inch/Front/48U | HDVCO-8-F-48 | 2280 | 48U | 8 | 10-INCH |
| High Density Vertical Cable Organiser/8 inch/Front & Back/48U | HDVCO-8-FB-48 | 2280 | 48U | 8 | 20-INCH |
| High Density Vertical Cable Organiser/8 inch/Front/52U | HDVCO-8-F-52 | 2485 | 52U | 8 | 10-INCH |
| High Density Vertical Cable Organiser/8 inch/Front & Back/52U | HDVCO-8-FB-52 | 2485 | 52U | 8 | 20-INCH |
| High Density Vertical Cable Organiser/12 inch/Front/22U | HDVCO-12-F-22 | 1125 | 22U | 12 | 10-INCH |
| High Density Vertical Cable Organiser/12 inch/Front & Back/22U | HDVCO-12-FB-22 | 1125 | 22U | 12 | 20-INCH |
Features & Accessories
Features
- Composite construction basic frame-Steel powder coated and fingers made of ABS for high strength to carry large quantity cables.
- Cable Spools and Slots in Centre support Member for large quantity cable management.
- Semicircular ABS fingers assure no cable damage.
- Unique double hinge design door at front and back to open door from left to right or right to left for easy cable management.
- The Vertical Cable Organiser free standing on floor and bolted to open rack for better alignment and aesthetic looks.
| Model Matrix & Dimensions | |||||
|---|---|---|---|---|---|
| Description | Part No. | H | h | W(Inch) | D(Inch) |
| High Density Vertical Cable Organiser/12 inch/Front/36U | HDVCO-12-F-36 | 1747 | 36U | 12 | 10-INCH |
| High Density Vertical Cable Organiser/12 inch/Front & Back/36U | HDVCO-12-FB-36 | 1747 | 36U | 12 | 20-INCH |
| High Density Vertical Cable Organiser/12 inch/Front/42U | HDVCO-12-F-42 | 2013 | 42U | 12 | 10-INCH |
| High Density Vertical Cable Organiser/12 inch/Front & Back/42U | HDVCO-12-FB-42 | 2013 | 42U | 12 | 20-INCH |
| High Density Vertical Cable Organiser/12 inch/Front/45U | HDVCO-12-F-45 | 2147 | 45U | 12 | 10-INCH |
| High Density Vertical Cable Organiser/12inch/Front & Back/45U | HDVCO-12-FB-45 | 2147 | 45U | 12 | 20-INCH |
| High Density Vertical Cable Organiser/12 inch/Front/48U | HDVCO-12-F-48 | 2280 | 48U | 12 | 10-INCH |
| High Density Vertical Cable Organiser/12 inch/Front & Back/48U | HDVCO-12-FB-48 | 2280 | 48U | 12 | 20-INCH |
| High Density Vertical Cable Organiser/12 inch/Front/52U | HDVCO-12-F-52 | 2458 | 52U | 12 | 10-INCH |
| High Density Vertical Cable Organiser/12 inch/Front & Back/52U | HDVCO-12-FB-52 | 2458 | 52U | 12 | 20-INCH |
| High Density Vertical Cable Organiser/15 inch/Front/22U | HDVCO-15-F-22 | 1125 | 22U | 15 | 10-INCH |
| High Density Vertical Cable Organiser/15 inch/Front & Back/22U | HDVCO-15-FB-22 | 1125 | 22U | 15 | 20-INCH |
| High Density Vertical Cable Organiser/15 inch/Front & Back/36U | HDVCO-15-F-36 | 1747 | 36U | 15 | 10-INCH |
| High Density Vertical Cable Organiser/15 inch/Front & Back/36U | HDVCO-15-FB-36 | 1747 | 36U | 15 | 20-INCH |
| High Density Vertical Cable Organiser/15 inch/Front/42U | HDVCO-15-F-42 | 2013 | 42U | 15 | 10-INCH |
| High Density Vertical Cable Organiser/15 inch/Front & Back/42U | HDVCO-15-FB-42 | 2013 | 42U | 15 | 20-INCH |
| High Density Vertical Cable Organiser/15 inch/Front/45U | HDVCO-15-F-45 | 2147 | 45U | 15 | 10-INCH |
| High Density Vertical Cable Organiser/15 inch/Front & Back/45U | HDVCO-15-FB-45 | 2147 | 45U | 15 | 20-INCH |
| High Density Vertical Cable Organiser/15 inch/Front/48U | HDVCO-15-F-48 | 2280 | 48U | 15 | 10-INCH |
| High Density Vertical Cable Organiser/15 inch/Front & Back/48U | HDVCO-15-FB-48 | 2280 | 48U | 15 | 20-INCH |
| High Density Vertical Cable Organiser/15 inch/Front/52U | HDVCO-15-F-52 | 2458 | 52U | 15 | 10-INCH |
| High Density Vertical Cable Organiser/15 inch/Front & Back/52U | HDVCO-15-FB-52 | 2458 | 52U | 15 | 20-INCH |
Note:
- It is recommended to distribute the Load along with U space in the Rack
- Dimension are in MM
Abbreviations:
H - Overall height
h - Usable height
W - Overall width
D - Overall depth
