• Conforms to DIN 41494 or Equivalent EIA / ISO / EN Standard
• High-strength, lightweight 6061-T6 aluminum extrusion constructions
• Two top angles and heavy-duty assembly hardware for a stronger rack to handle heavier loading.
• 25 No. M6 mounting screws with combination Phillips/ straight heads and pilot points to reduce cross threading and installation time
• Unique packaging inserts eliminate damage from components hitting together in the carton during shipping and handling.
• Ease of assembling by high quality fasteners.
• Universal 12.7mm-15.875mm-15.875mm alternating hole pattern offers greater mounting flexibility, maximizes usable mounting space

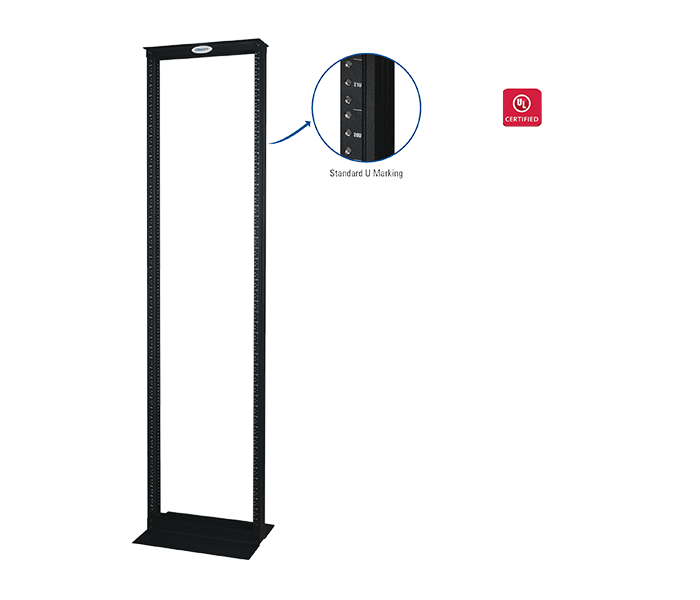

• Numbered U positions
• Panel Mounting Holes: M6 threads in both flanges
• Powder Coated or anodized provide a uniform appearance and protection against aluminum oxidation corrosion
• State-of-the-art manufacturing methods provide the best product quality and fastest delivery in the industry
• Conductive M6 tapped DIN standard holes -100% assured conductivity within the rack. Eliminate separate grounding strip.
• Heavy duty bottom (160X60X8Th) MM & top angles (38X38X4.8Th) MM and C frames (32X75X5Th) MM to ensure up to 1500Kg static load capacity
• Custom configurations and assemblies available by special order
• Assembly hardware is included

• Weight capacity of 1500Kg Static (weight must be evenly distributed)



Note:

• Overall Height = Frame Height+Plinth or Caster. Other models can be manufactured on request
• It is recommended to distribute the Load along with U space in the Rack
• Dimension are in MM


Accessories:

• Cable Organisers
• Power Distribution Units
• Shelves
• Rack Ground Kit
• Cable Runways
• Extended Leg / Castors


Abbreviations:

H - Overall height

h - Usable height

W - Overall width

w - Usable width
