OVERVIEW

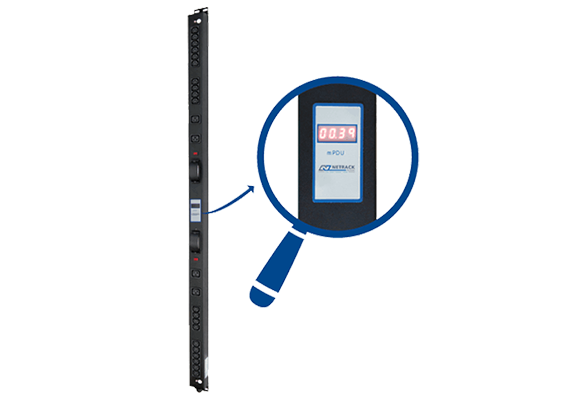

PDU with inbuilt reliable Circuit board with digital display and can be programmed to show current, Voltage or Power or roll over on PDU level. This PDU is designed to bridge gap between conventional and intelligent PDU where in user map the load on the PDU and avoid over loading and MCB Tripping.
The PDU available with different types sockets configurations (Indian 5A,Indian 5/15, Intel Multipin, IEC Sockets) and All NetRack PDU's are rated and protected with MCB & Fuses to meet different industrial requirements. Input either open or with Indian / lEC Plugs. Available in horizontal and vertical Mounting Models with 1 Phase & 3 Phase Variants
Standard off the shelf Models are below and can be customized to customer requirement
Technical Specification
| Multi Pin | ||
|---|---|---|
| 1 | 1Ph, 230V, 32A, 3U standard rack mount Metered power distribution unit with 12 X Indian Round Pin 5/15A, (Inlet Plug Not Installed, Recommended IEC30932A 2P+E), 16A MCB X 2 Circuits- PDU Rating 7.3KVA/Bottom feed-3Mt/ Black | MPDU-H-1-IND-B12-X4-Y2-Z0 |
| 2 | 1Ph, 230V, 32A, 3U standard rack mount Metered power distribution unit with 12 X Indian Round Pin/ Octogonal, 5/15A, (Inlet Plug Not Installed, Recommended IEC30932A 2P+E), 16A MCB X 2 Circuits- PDU Rating 7.3KVA/Bottom feed-3Mt/ Black | MPDU-H-1-IND-C12-X4-Y2-Z0 |

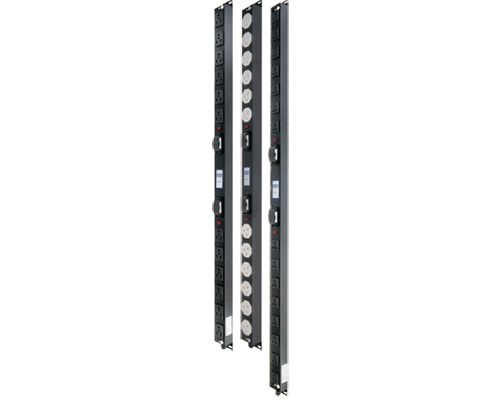

| 3 | 1Ph, 230V, 16A, Zero U standard Vertical rack mount Metered power distribution unit with 15 X Indian round pin 6A, Inlet Plug type 16A Indian Round Pin, 16A MCB - PDU Rating 3.6KVA/Bottom feed-3Mt/ Black | MPDU-V-1-IND-A15-X4-Y4-Z0 |
| 4 | 1Ph, 230V, 32A, Zero U standard Vertcal rack mount Metered power distribution unit with 12 X Indian Round Pin 5/15A , Inlet Plug(Not Installed, Recommended IEC30932A 2P+E), 16A MCB X 2 Circuits - PDU Rating 7.3KVA/Bottom feed/ Black | MPDU-V-1-IND-B12-X4-Y4-Z0 |
| 5 | 1Ph, 230V, 32A, Zero U standard Vertcal rack mount Metered power distribution unit with 12 X Indian Round Pin 5/15A/ Octogonal, Inlet Plug(Not Installed, Recommended IEC30932A 2P+E), 16A MCB X 2 Circuits - PDU Rating 7.3KVA/Bottom feed-3Mt/ Black | 5 MPDU-V-1-IND-C12-X3-Y4-Z0 |
| 6 | 1Ph, 230V, 32A, Zero U standard Vertical rack mount Metered power distribution unit with 10 X Intel Multipin 13A, (Inlet Plug Not Installed, Recommended IEC30932A 2P+E), 16A MCB X 2 Circuits - PDU Rating 7.3KVA/Bottom feed-3Mt/ Black | MPDU-V-1-MP-E10-X4-Y4-Z0 |
| 7 | 1Ph, 230V, 32A, Zero U standard Vertical rack mount Metered power distribution unit with 15 X Intel Multipin 13A, (Inlet Plug Not Installed, Recommended IEC30932A 2P+E), 16A MCB X 2 Circuits - PDU Rating 7.3KVA/Bottom feed-3Mt/ Black | MPDU-V-1-MP-E15-X4-Y4-Z0 |
| IEC Socket | ||
|---|---|---|

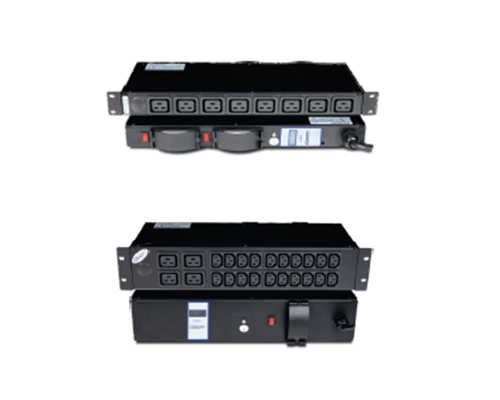

| 1 | 1Ph, 230V, 32A, 1U Metered standard rack mount Metered power distribution unit with 12 X C13, Inlet Plug (Inlet Plug Not Installed, Recommended IEC30932A 2P +E), 16A MCB X 2 Circuits - PDU Rating 7.3KVA/Bottom feed-3Mt/ Black | MPDU-H-1-IEC-F12-X4-Y2-Z0 |
| 2 | 1Ph, 230V, 32A, 1U Metered standard rack mount Metered power distribution unit with 8 X C19, Inlet Plug (Inlet Plug Not Installed, Recommended IEC30932A 2P+E), 16A MCB X 2 Circuits - PDU Rating 7.3KVA/Bottom feed-3Mt/ Black | MPDU-H-1-IEC-G8-X4-Y2-Z0 |
| 3 | 1Ph, 230V, 32A, 1U standard rack mount Metered power distribution unit with 4 X C13 & 4 XC19, Inlet Plug (Inlet Plug Not Installed, Recommended IEC30932A 2P+E), 16A MCB X 2 Circuits - PDU Rating 7.3KVA/Bottom feed-3Mt/ Black | MPDU-H-1-IEC-F4-G4-X4-Y2-Z0 |
| 4 | 1Ph, 230V, 32A, 2U standard rack mount power Metered distribution unit with 20X C13 & 4 XC19, Inlet Plug (Inlet Plug Not Installed, Recommended IEC30932A 2P+E), 16A MCB X 2 Circuits - - PDU Rating 7.3KVA/Bottom feed-3Mt/ Black | MPDU-H-1-IEC-F20-G4-X4-Y2-Z0 |
| 5 | 1Ph, 230V, 32A, 1U Metered standard rack mount Metered power distribution unit with 12 X C13, Inlet Plug (Inlet Plug Not Installed, Recommended IEC30932A 2P +E), 16A MCB X 2 Circuits - PDU Rating 7.3KVA/Bottom feed-3Mt/ Black | MPDU-H-1-IEC-F12-X4-Y2-Z0-UL |
| IEC Socket | ||
|---|---|---|
| 1 | 1Ph, 230V, 32A, Zero U standard rack mount Metered power distribution unit with 12 X C13, Inlet Plug (Not Installed, Recommended IEC30932A 2P +E), 16A MCB X 2 Circuits - PDU Rating 7.3KVA/Bottom feed-3Mt/ Black | MPDU-V-1-IEC-F12-X4-Y4-Z0 |
| 2 | 1Ph, 230V, 32A, Zero U standard rack mount Metered power distribution unit with 12X C13 & 4 X C19, Inlet Plug (Not Installed, Recommended IEC30932A 2P+E), 16A MCB X 2 Circuits - PDU Rating 7.3KVA/Bottom feed-3Mt/ Black | MPDU-V-1-IEC-F12-G4-X4-Y4-Z0 |
| 3 | 1Ph, 230V, 32A, Zero U standard rack mount Metered power distribution unit with 20 X C13 & 4 X C19, Inlet Plug (Inlet Plug Not Installed, Recommended IEC30932A 2P+E), 16A MCB X 2 Circuits - PDU Rating 7.3KVA/Bottom feed-3Mt/ Black | MPDU-V-1-IEC-F20-G4-X4-Y4-Z0 |
