OVERVIEW

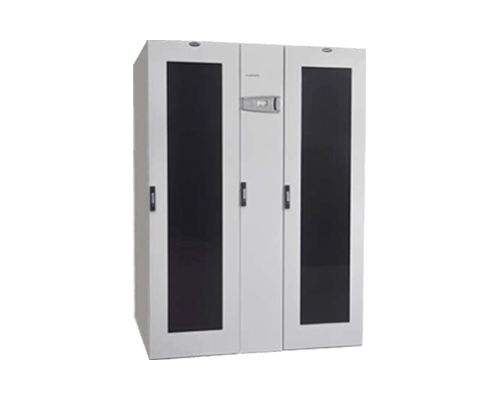

iRack Block a Self Cooled, Self Powered & Self Contained Rack. Trend towards having Intelligent Infra Capsules/Modular Data Centres on Premises at Banking & Insurance Sector, Warehouses, Manufacturing sector & Educational Institutions made the Rack manufactures to think on concept of iRack Block. Thanks to Technology which made the concept a reality today
The Racks manufactured out of steel sheet punched, formed, welded and powder coated with highest quality standards under stringent ISO 9001 | ISO 14001 | ISO 27001 | ISO 45001 Manufacturing & Quality management system to ensure highest quality product.
Standard for Racks configuration will be welded ultra rigid frame with 4 No. Pillars of 14 Gauge steel sheet 6 folded profile welded to top and bottom ribbed/reinforced frame additionally supported depth wise by welding 6 No. depth rail 4 folded 75mm 16 Gauge profile. Front Glass door with lock & key and Back Metal door with lock & key and Plain dual side panels. Free standing on plinth

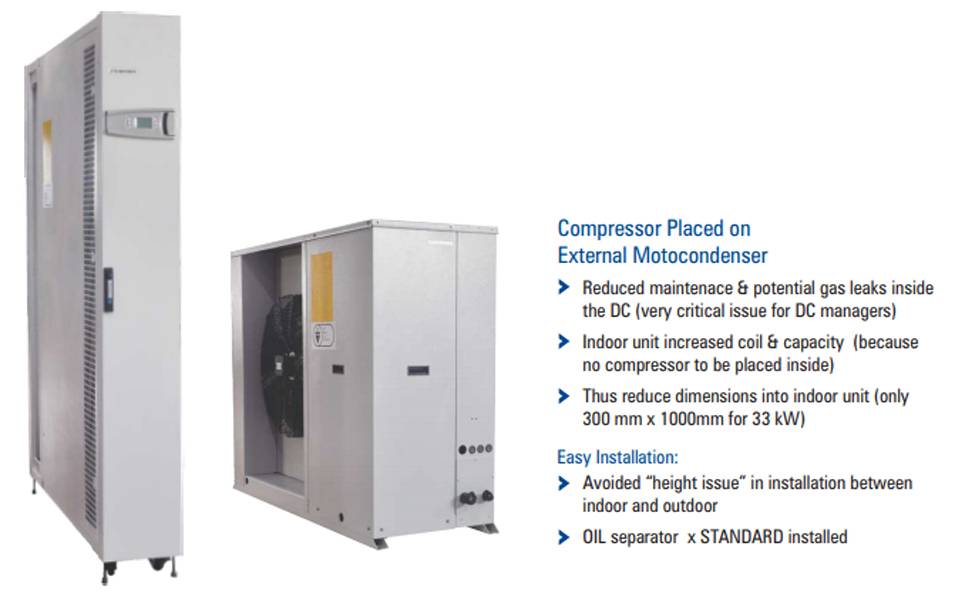

To Complete intelligence in iRack Block NetRack integrate a PAC Unit, UPS & Battery bank, Intelligent PDU for Power, Surveillance & Environmental management, KVM & Console for server management, Intelligent Rack access for physical security will complete full fledged iRack Block Configuration..

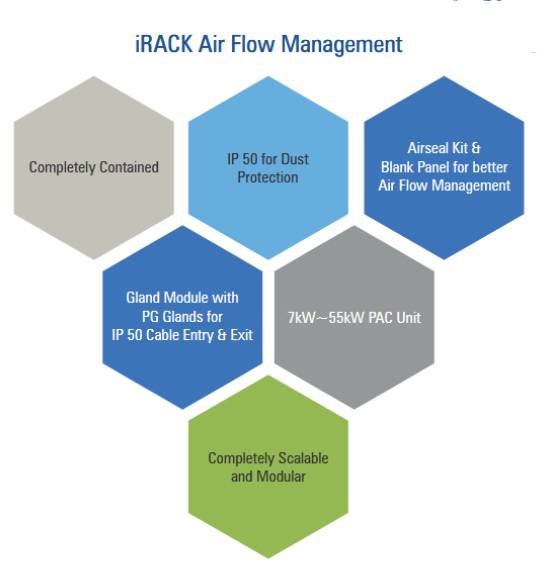

iRack Block is equipped with Air-seal Kit, Blanking panels, Gland Plate Modules for complete Airflow management.
Technical Specification




| Technical Data: | |
|---|---|
| Rack Load Capacity | 1500 Kg |
| Rack U Space | 42U |
| Rack Dimension | 2100 X 600 X 1450 |
| Cooling Capacity | 7kW ~ 55kW |
| Rack Access Control | A vailable |
| Camera Based Surveillance | A vailable |
| Intelligent PDU | A vailable |
| Intelligent Climate Monitoring | A vailable |
| Analogue / Digital KVM | A vailable |
| Intelligent Asset Management | A vailable |
| Technical Data: | |
|---|---|
| PAC Dimension | 2100 X 300 X 1450 |
| Refrigerant | R410A |
| Primary Circuit T ype | Direct Expansion Air Cooled |
| Number Of Circuit | One |
| Humidifier | A vailable |
| Heater | A vailable |
| Compressor | Scroll |
