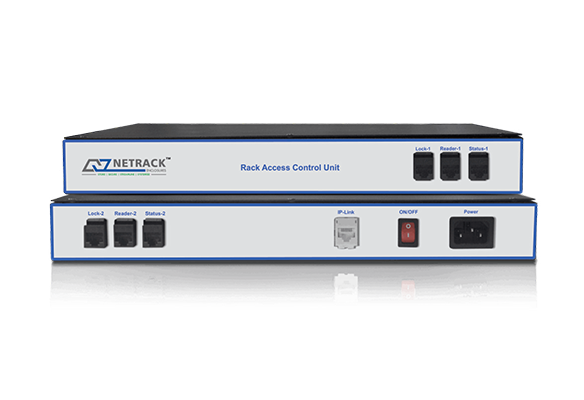

OVERVIEW
iLock controller, designed and manufactured with highest quality standards to control & manage front & back door of Rack / Enclosures. The system is reliable easy to install with minimum support and can be Installed in new Racks and retrofitted on existing Racks
All critical components installed in 1U enclosure with external connectors for easy installation, different readers & lock options Available to meet the requirement of the industry.
The product consist of three major components
- Controller
- Reader
- Mechatronics Locks
Technical Specification
| Technical Data: | |
|---|---|
| CPU | ARM 32 Bit RISC Processor |
| Memory | Up to 8 MB (Flash) |
| No. Of. Doors | 2 |
| No. Of Readers | 2 |
| Events/Transactions | 1,00,000 |
| No. Users | 50,000 |
| Web Server | Yes |
| Reader Interface | Wigand Upto 34 Bit |
| Input | 4 |
| Output | 4 |
| Communication Port | TCP/IP, Rs485 |
| Fire Integration | Yes |
| Intrusion Integration | Yes |
| LCD | 16X2 LCD Display |
| Keypad | 4X3 Key with Soft Keypad |
| Baud Rate | 96000bps (Default) |
| Controller ID | Unlimited |
| Language | English |
| Power Supply | 12 V Dc / 5A |
| Enclosure | 1 U rack Enclosure |
| Facility Code | Available |
| Time Zone / Access Levels | 63 + 1 ( free Time Zone/Unlimited) |
| Time Zone Slots | 4 Slots per Day |
| Holiday Settings | 42 |
| Model Matrix | ||
|---|---|---|
| Control Module | ||
| 1 | Intelligent Rack Access Controller/1U 2Door+TCPIP+Modubus+(Management Software/Single location/Acess Database Software/500 User/Max Data 60MB) | RAC00 |
| Operating Module | ||
| 2 | Operating Module / Keypad | RAC-001 |
| 3 | Operating Module Keypad / EM Card | RAC-002 |
| 4 | Operating Module Keypad / Mifare card | RAC-003 |
| 5 | Operating Module / Keypad + HID Prox card / 125Khz | RAC-004 |
| 6 | Operating Module /Keypad +HID I class / 13.5Mhz | RAC-005 |
| 7 | Operating Module / Keypad +Biometric Reader | RAC-006 |
| 8 | Operating Module / Keypad +EM Card +Biometric Reader | RAC-007 |
| 9 | Operating Module / Keypad + Mifare card+Biometric Re | RAC-008 |
| 10 | Operating Module / Keypad + HID Prox card / 124Khz+Biometric Reader | RAC-009 |
| 11 | Operating Module / Keypad +HID I class / 13.5Mhz+Biometric Reader | RAC-010 |
| Door Accessories | ||
| 12 | Swing Handle Lock / Mechatronics/1Point | RAC-011-1 |
| 13 | Swing Handle Lock / Mechatronics/3Point | RAC-011-3 |
| 14 | Swing Handle Lock / Mechatronics/4Point | RAC-011-4 |
| 15 | Door Status Switch | RAC-012 |
| 16 | Door Status Sensor | RAC-013 |
| Advanced Management Software | ||
| 17 | Management software / Multi-location / MS SQL database (Up to 1000 Users)SQL License in Customer Scope / SQL Express: 4GB & SQL License | RAC-015 |

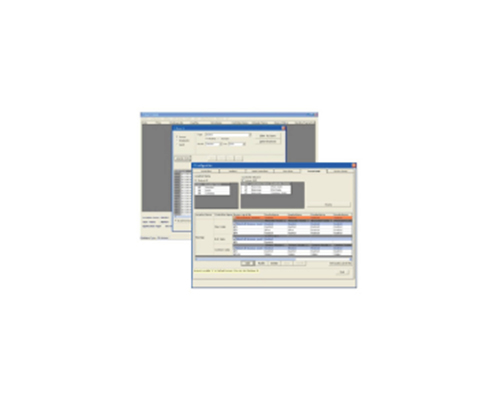

Over View- Management Software
Smart access is a new and latest access management software specially designed for Rack access controller this software has unique feature of configuring various parameters at reader level instead of controller level as in download reader rather controller, thus offering more flexibility in defining the access designed and developed which can include any new product or controllers that would be introduced in future by Netrack
System Configuration
- Windows 2000 or above - 80 GB Harddisk
- 1 GB RAM
- Mouse available
Features & Accessories
Features
- 1U Rack mountable easy to install with excellent regional support, Value added customization support
- Reliable, robust and scalable solutions
- Industry specific value added feature
- Solutions give a complete configurable facility to control front and back door of server rack
- Lock / unlock the access point depending upon the pre-configured access rules based on credentials and time
- Plug & Play Mechatronic Locks and Readers with RJ45 Connectivity
- Onboard TCP/IP, The versatile interface makes the devices technically very strong & user friendly. It gives a huge freedom to use the infrastructure either its existing or, upcoming SNMP Alerts: SNMP Alerts generated for various events i.e, Unauthorized Access, DOTL, Door Force Open, Etc.
- Easy Remote Online Firmware Up-gradation, Device Has inbuilt capability for online firmware up-gradation
- Transaction and user Capacity: It stores up to 50,000 User/Cards and up to 1,00,000 Transaction/Events
- Data Security: Data can be Downloaded on the software by mapping the IP address of the controller making it more secure
- Multi card Format Supported: Compatible with all latest card technology, HID-iClass, HID PROX, Mifare, EM Prox
- Dual authentication ready. Card + PIN, Biometric + PIN
Mechatronics Locks
Readers / Operating Module Power
Key Features 0f The Project
- Bulk upload of cards
- Finger or Card Identity for admin login - supports duress finger
- User definable LCD messages
- Multiple time zone
- APBs: user wise soft, area wise, escort - Holidays: 42 (Reader Wise)
- Controller No: Max 9999
- Auto Downloading
- Reset command from software
- Self backup of Database
- Report Format : excel, Xml, dbf, txt, csv
- Crystal reports
Specifications For Rac 015
- Multiuser
- Multi Company
- Multi Location
- Employee Photograph
- Visible online status when connected to PC
- Displaying short Messages
- Fingerprint Templates Management
- Delay time to access successive punches from the same user
Security Features
- Audit Log available - Password Protected
- Definable user Rights
- Restriction of downloading from a particular company only using IP address
Reports
- Access Report -10 Entry Report - FILO Report
- Event Report
- Unknown Transaction Report
- Employee Report
- Employee Access Level Report
- Audit Report
