Brush Modules

OVERVIEW

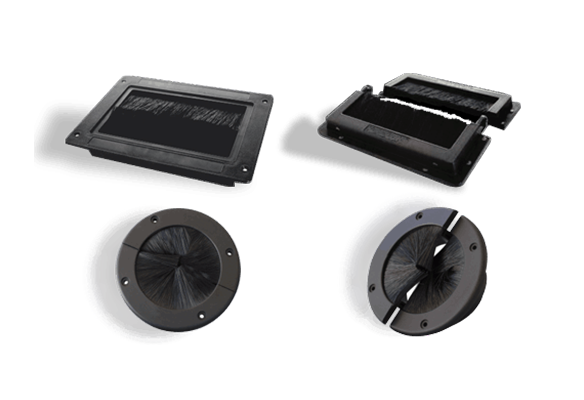

Moulded Brush Modules are ready made solutions to avoid air flow leakage at raise flow & available in different sizes and shapes to suit site requirements.

Technical Specification

Model Matrix & Dimensions
DescriptionPart No.Overall DimensionsTile Cut OutDimensionsUsableDimensions
Brush Module/Moulded/280X210BM-MS-280210280X210235X175205X125
Brush Module/Moulded//Split/280X210BM-MS-S-280210280X210235X175205X125
Brush Module/Moulded/195X145BM-MS-195X145195X145150X105120X60
Brush Module/Moulded/Split/195X145BM-MS-S-195X145195X145150X105120X60
Brush Module/Moulded/4" roundBM-MR-4DIA 143DIA 102DIA 88
Brush Module/Moulded/Split/4" roundBM-MR-S-4DIA 143DIA 102DIA 88



Features

  • Double Layered Engineered Sealing System - Brush upper & EPDM lower gasket.
  • Unique Air - Guard overlapping better seal Nylon 6 Brush System
  • Integrated Safety Cover
  • Manufactured from high strength, flame retardant ABS and V0 rated nylon brush and EPDM.
  • Easy to install.
  • RoHS compliant.



Brush Modules

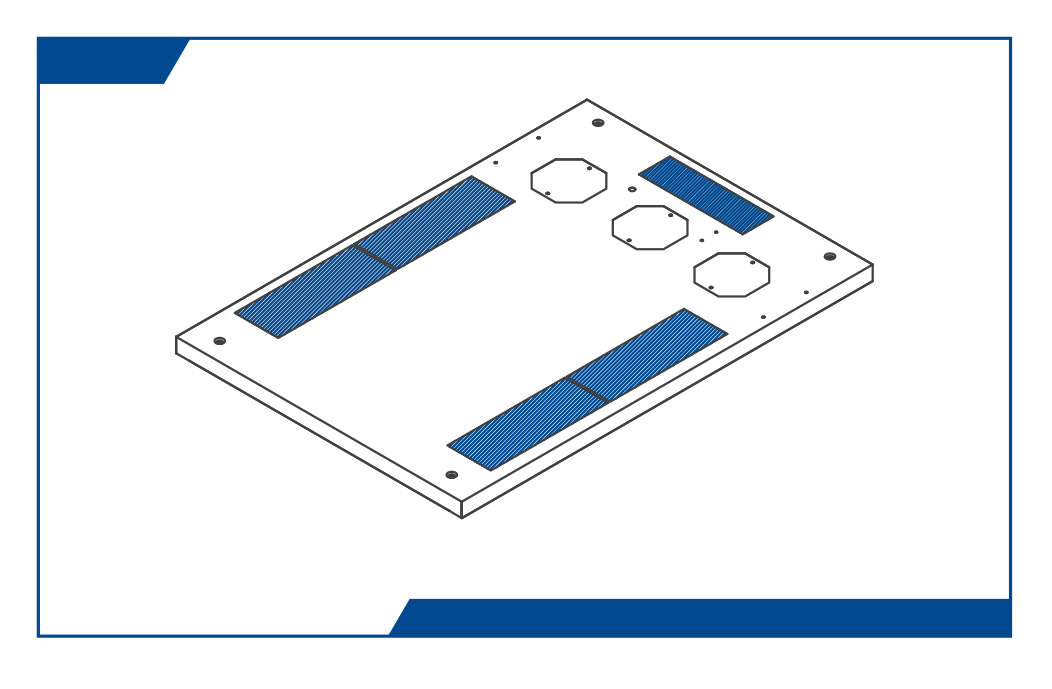

Brush Module/Top Panel

Model Matrix & Dimensions
DescriptionPart No
Brush Module/Top Panel/300X85BM-TP-30085
Brush Module/Top Panel/600X85BM-TP-60085
Brush Module/Top Panel/900X85BM-TP-90085
Brush Modules

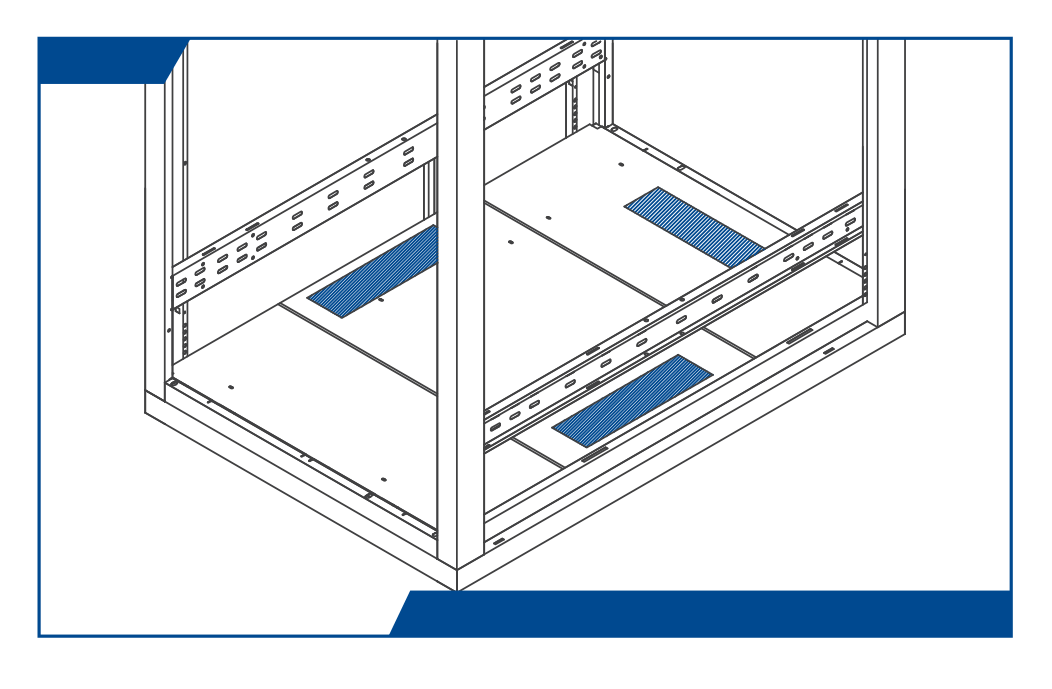

Brush Module/Bottom Panel

Model Matrix & Dimensions
DescriptionPart No
Brush Module/Bottom Panel/300X85BM-BP-30085
Brush Module/Bottom Panel/600X85BM-BP-60085
Brush Module/Bottom Panel/900X85BM-BP-90085
Brush Modules

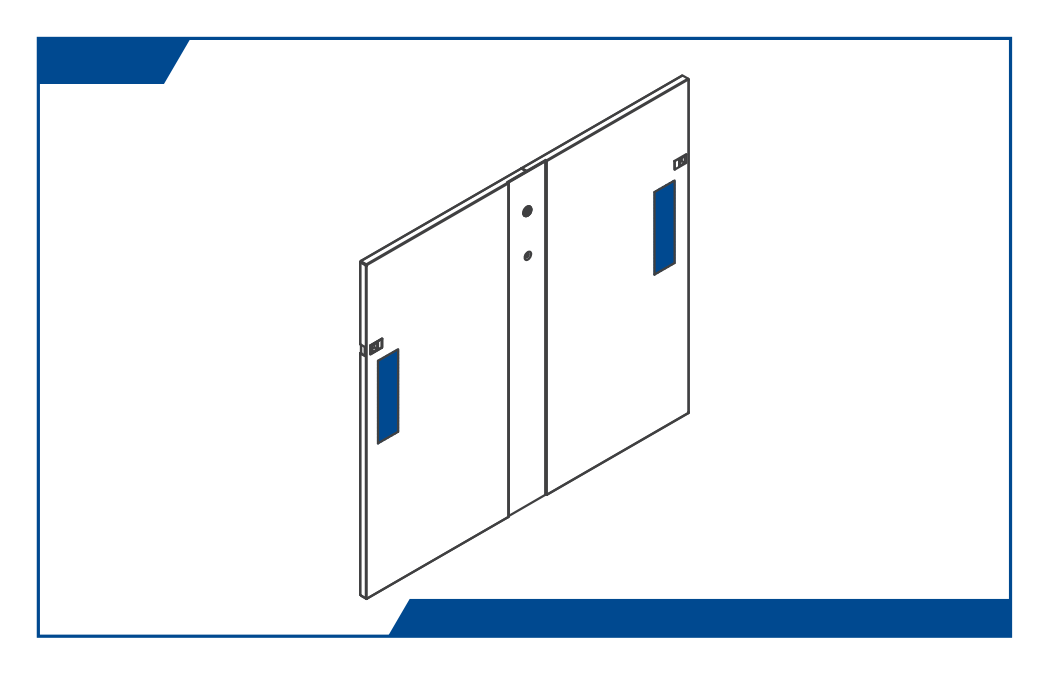

Brush Module/Side Panel

Model Matrix & Dimensions
DescriptionPart No.
Brush Module/Side Panel/300X85/1BM-SP-30085-1
Brush Module/Side Panel/300X85/2BM-SP-30085-2
Brush Module/Side Panel/300X85/4BM-SP-30085-4
Brush Modules

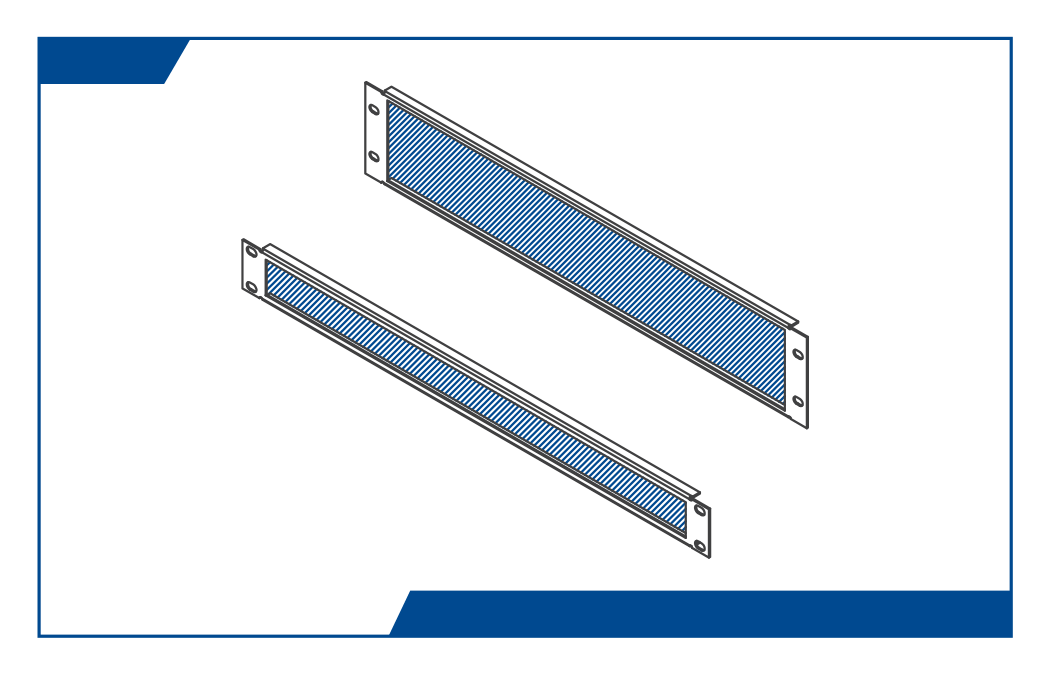

Brush Panel/1U & 2U

Model Matrix & Dimensions
DescriptionPart No
Brush Panel/1UBRP-1
Brush Panel/2UBRP-2
Brush Modules

Air Seal Kit/ Brushed

Model Matrix & Dimensions
DescriptionPart No.
Front Air Seal Kit/42/600/4 Opening per side/Brushed/Type1ASK-42-600-B-001
Front Air Seal Kit/42/800/4 Opening per side/Brushed/Type1ASK-42-800-B-001
Front Air Seal Kit/42/600/4 Opening per side/Brushed/Type2ASK-42-600-B-002
Front Air Seal Kit/42/800/4 Opening per side/Brushed/Type2ASK-42-800-B-002
