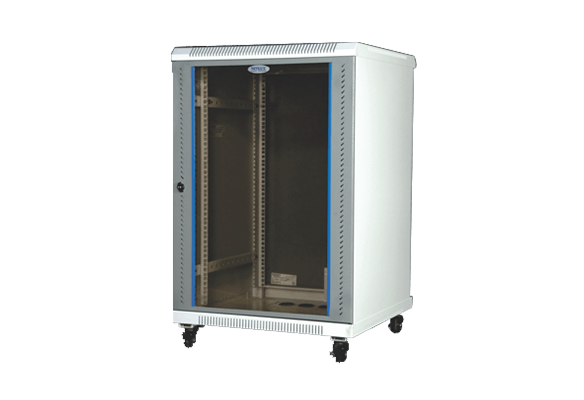

FM Series, General Electronics Racks for Small Networking, AV, Telecom & lab application. Racks manufactured out of steel sheet punched, formed, welded and Powder coated with highest quality standards under stringent ISO 9001 | ISO 14001 | ISO 27001 | ISO 45001 Manufacturing & Quality management system to ensure highest quality product.
Standard for Racks configuration will be welded frame integrated with side panel and vented top cover with fan mounting provision, Associated with Front Glass Door with lock & Key and Back Metal door with lock & key and freestanding on floor with 4 No casters wheels with 2 No with brakes and 2 No without brakes
Available in 6RU ~32RU Variants with 600 Depth configurations and 600 Width configurations
Technical Specification
| Technical Data: | |
|---|---|
| Basic Frame | Steel |
| Construction | Welded |
| Top & Bottom Cover | Welded to Frame with Cable entry exit cut outs |
| Front Door | Lockable Toughened Glass Door |
| Rear Door | Lockable Steel Door |
| 19” Mounting Angle | Formed Steel |
| Std. Equipment Mounting | DIN Std. 10mm Sq. Slots |
| Standard Finish | Powder coated |
| Standard Colour | Grey & Off White OR Black |
| Standard Mounting | Caster wheels (2 with Brake & 2 without Brake) |
| Rack Standard | Conforms to DIN 41494 or equivalent standard |
| Static Load | 150Kg |
| Model Matrix & Dimensions | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| FM Series | H | h | W | w | w1 | D | d | d1 | Caster-type |
| 6UX600x600 | 464 | 6U | 600 | 19” | 451 | 600 | 560 | 445 | Type-2 |
| 9UX600x600 | 597 | 9U | 600 | 19” | 451 | 600 | 560 | 445 | Type-2 |
| 12UX600x600 | 730 | 12U | 600 | 19” | 451 | 600 | 560 | 445 | Type-2 |
| 15UX600x600 | 864 | 15U | 600 | 19” | 451 | 600 | 560 | 445 | Type-2 |
| 17UX600x600 | 952 | 17U | 600 | 19” | 451 | 600 | 560 | 445 | Type-2 |
| 22UX600x600 | 1175 | 22U | 600 | 19” | 451 | 600 | 560 | 445 | Type-2 |
| 27UX600x6000 | 1396 | 27U | 600 | 19” | 451 | 600 | 560 | 445 | Type-2 |
| 32UX600X600 | 1620 | 32U | 600 | 19” | 451 | 600 | 560 | 445 | Type-2 |
Features & Accessories
Features
- Conforms to DIN 41494 or Equivalent EIA /ISO / EN / CEA Standard
- Adjustable mounting depth
- 4 No Adjustable, 19” verticals with Punched 10 mm Square Hole and Universal 12.7mm-15.875mm-15.875mm alternating hole pattern offers greater mounting flexibility, maximizes usable mounting space.
- Universal 44.45MM Pitch Holes For DIN Standard Racks
- State-of-the-art manufacturing methods provide the best product quality and fastest delivery in the industry
- 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
- Powder coated finish with seven tank pretreatment process meeting ASTM standard
- Grounding & Bonding Options
- Fan module Mount provision on top cover
Note:
- It is recommended to distribute the Load along with U space in the Rack
- Other models can be manufactured on request
- Dimension are in MM
- 1U = 44.45 mm
Abbreviations
H - Overall height
h - Usable height
W - Overall width
w - Usable width
w1 - Usable width Between Front MTG. Angles
D - Overall depth
d - Usable depth
d1 - Usable Depth From Front & Rare Mounting Angle
Accessories
- Cable Organisers
- Power Distribution Units
- Shelves
- Fan Moduels
- Rack ground Kit
