OVERVIEW

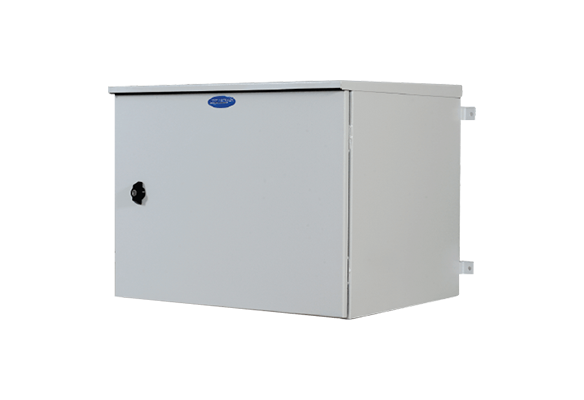

WMOD Series, Wall mount Racks for Outdoor Application and Design to meet IP56 with Fan & IP66 without Fan (Ingress protection) requirement. Rack are manufactured out of Galvanized Steel sheet punched, Format, welded to withstand the outdoor bad condition the racks are specially powered coated by Duel coat with primer & pure polyester Power
Racks are manufactured with highest quality standards under stringent ISO 9001 | ISO 14001 | ISO 27001 | ISO 45001 Manufacturing & Quality management system.
Available from 6RU~15RU Variants, 600 wide and 400~600 Depth with Double louver cover configurations. Fan mounting provision can be on side or bottom with filter unit to meet IP56 (Ingress protection) Requirements.
Technical Specification
| Technical Data: | |
|---|---|
| Basic Frame | Galvanized Steel Folded |
| Construction | Welded |
| Top & Bottom Cover | (GI) Welded to Frame |
| Front Door | Lockable GI Door Plain or Lockable Toughened Glass GI Door |
| 19” Mounting Angle | Formed GI |
| Std. Equipment Mounting | DIN Std. 10mm Sq. Slots |
| Standard Finish | Pure Polyester Powder Coating |
| Standard Colour | Off White OR Black |
| Standard Mounting | Wall Mount or Pole Mount |
| Rack Standard | Conforms to DIN 41494 & IEC 60529 Equivalent Standards |
| Static Load | 50 Kg (Uniformly Distributed) |
| Protection Class | IP56 (with Fan) & IP66 (without Fan) |
| Model Matrix & Dimensions | ||||||||
|---|---|---|---|---|---|---|---|---|
| WMOD SERIES | H | h | W | w | w1 | D | d | d1 |
| 6U/600X400 | 398 | 6U | 600 | 19” | 451 | 400 | 380 | 270 |
| 6U/600X500 | 398 | 6U | 600 | 19” | 451 | 500 | 480 | 370 |
| 6U/600X550 | 398 | 6U | 600 | 19” | 451 | 550 | 530 | 380 |
| 6U/600X600 | 398 | 6U | 600 | 19” | 451 | 600 | 580 | 470 |
| 9U/600X400 | 531 | 9U | 600 | 19” | 451 | 400 | 380 | 270 |
| 9U/600X500 | 531 | 9U | 600 | 19” | 451 | 500 | 480 | 370 |
| 9U/600X550 | 531 | 9U | 600 | 19” | 451 | 550 | 530 | 380 |
| 9U/600X600 | 531 | 9U | 600 | 19” | 451 | 600 | 580 | 470 |
| 12U/600X400 | 664 | 12U | 600 | 19” | 451 | 400 | 380 | 270 |
| 12U/600X500 | 664 | 12U | 600 | 19” | 451 | 500 | 480 | 370 |
| 12U/600X550 | 664 | 12U | 600 | 19” | 451 | 550 | 530 | 380 |
| 12U/600X600 | 664 | 12U | 600 | 19” | 451 | 600 | 580 | 470 |
| 15U/600X400 | 797 | 15U | 600 | 19” | 451 | 400 | 380 | 270 |
| 15U/600X500 | 797 | 15U | 600 | 19” | 451 | 500 | 480 | 370 |
| 15U/600X550 | 797 | 15U | 600 | 19” | 451 | 550 | 530 | 380 |
| 15U/600X600 | 797 | 15U | 600 | 19” | 451 | 600 | 580 | 470 |
Features & Accessories
Features
- Conforms to DIN 41494 or Equivalent EIA/ ISO/ EN/ CEA Standard
- Adjustable mounting depth
- Conforms to IEC 60529 or Equivalent IS/ EN/ Standards for Ingress Protectio
- 4 No Adjustable, 19” verticals with Punched 10 mm Square Hole and Universal 12.7 mm -15.875mm- 15.875 mm alternating hole pattern offers greater mounting flexibility, maximizes usable mounting space.
- State-of-the-art manufacturing methods provide the best product quality and fastest delivery in the industry.
- 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments).
- Special Dual Coat Powder coated finish meeting ASTM standard to Meet Harsh Out door Requirement.
- Grounding & Bonding Options
Accessories:
- Cable Organisers
- Power Distribution Units
- Shelves
- Cooling Fans
- Rack ground Kit
Note:
- It is recommended to distribute the Load along with U space in the Rack
- Dimension are in MM
Abbreviations
H - Overall height
h - Usable height
W - Overall width
w - Usable width
w1 - Usable width Between MTG. Angles
D - Overall depth
d - Usable depth
d1 - Usable Depth Mounting Angle to Angle
