OVERVIEW

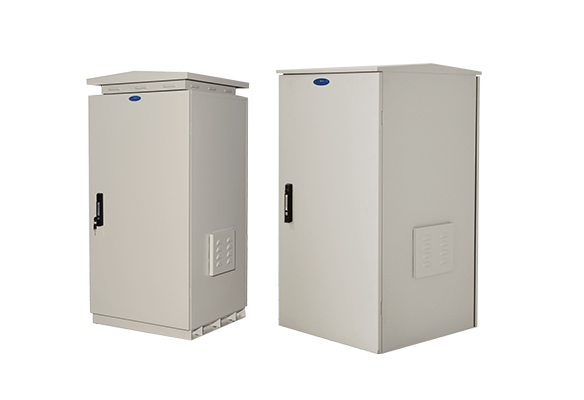

FMOD Series, General Electronics Floor mount Racks for Outdoor Application and Designed to meet IP56 with Fan & IP66 without Fan (Ingress protection) requirement. Racks manufactured out of Galvanized Steel sheet punched, formed, welded and to withstand the Harsh Outdoor condition the racks are specially powder coated dual coat with primer & pure polyester powder

Racks are manufactured with highest quality standards under stringent ISO 9001 | ISO 14001 | ISO 27001 | ISO 45001 Manufacturing & Quality management system

Standard for Racks will be fully welded frame with integrated side panel and Associated Front & Back Metal Door with 3 Point lock & Key and provision to mount racks on Floor.

Available from 6RU to 27RU Variants with 600 & 800 Width and 600~800 Depth configurations.

Fan mounting provision can be on sides or top with canopy with filter unit to meet IP 56 (Ingress protection) requirements

SEE CATALOGUE

Technical Specification

Technical Data:
Basic Frame	Galvanized Steel Folded
Construction	Welded
Top & Bottom Cover	(Galvanized Steel) Welded to frame
Front Door/Rear Door	Lockable Galvanized Steel Door plain or Lockable Toughened Glass Galvanized Steel Door
Rear Door	Lockable Galvanized Steel Door-Plain
19” Mounting Angle	Formed Galvanized Steel
Std. Equipment Mounting	DIN Std. 10mm Sq. Slots
Standard Finish	Pure polyester Powder coating
Standard Colour	Off white Or Black
Standard Mounting	Free Standing On Plinth
Rack Standard	Conforms to DIN 41494 & IEC 60529 Equivalent Standard
Static Load	750 Kg (Uniformly Distributed)
Protection Class	IP56 (with Fan) & IP66 (without Fan)

Model Matrix & Dimensions
FMOD SERIES - IP 56 Series	H	h	W	w	w1	D	d	d1	Plinth Height (mm)	Canopy (MM)
6UX600X600	379	6U	600	19”	451	600	560	445	50/100	60
6UX600X800	379	6U	600	19”	451	600	760	535	50/100	60
9UX600X600	512	9U	600	19”	451	600	560	445	50/100	60
9UX600X800	512	9U	600	19”	451	600	760	535	50/100	60
12UX600X600	645	12U	600	19”	451	600	560	445	50/100	60
12UX600X800	645	12U	600	19”	451	600	760	535	50/100	60
15UX600X600	778	15U	600	19”	451	600	560	445	50/100	60
15UX600X800	778	15U	600	19”	451	600	760	535	50/100	60
17UX600X600	867	17U	600	19”	451	600	560	445	50/100	60
17UX600X800	867	17U	600	19”	451	600	760	535	50/100	60
22UX600X600	1089	22U	600	19”	451	600	560	445	50/100	60
22UX600X800	1089	22U	600	19”	451	600	760	535	50/100	60
27UX600X600	1311	27U	600	19”	451	600	560	445	50/100	60
27UX600X800	1311	27U	600	19”	451	600	760	535	50/100	60

Features & Accessories

Features

Conforms to DIN 41494 or Equivalent EIA /ISO/ EN/ CEA Standard
Adjustable mounting depth
Conforms to IEC 60529 or Equivalent IS/ EN/ Standards for Ingress Protection
2 No Adjustable, 19” verticals with Punched 10 mm Square Hole and Universal 12.7mm-15.875mm-15.875mm alternating hole pattern offers greater mounting flexibility, maximizes usable mounting space.
State-of-the-art manufacturing methods provide the best product quality and fastest delivery in the industry
100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
Special Dual Coat Powder coated finish with seven-tank pretreatment process meeting ASTM standard to Meet Harsh Out door Requirement.
Grounding & Bonding Options

Accessories:

Angle Pair
Fixed Shelf
Cantilever Shelf
Sliding Shelf
Key Board Shelf

Power Distribution Units
Cable Oragnisers
Fans and Fan Modules
Rack Ground Kit
Plinth

Note:

Overall Height=Frame Height+Plinth & canopy
It is recommended to distribute the Load along with U space in the Rack
Dimension are in MM

Abbreviations

H - Overall height

h - Usable height

W - Overall width

w - Usable width

w1 - Usable width Between MTG. Angles

D - Overall depth

d - Usable depth

d1 - Usable Depth Mounting Angle to Angle
