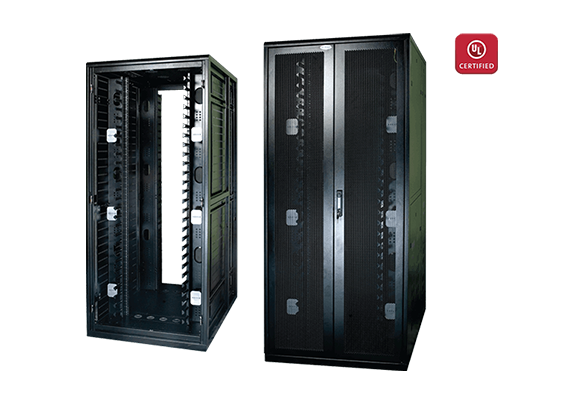

NHDC Series

OVERVIEW

NHDC Series-High Density Closed Racks Enhanced to Handle High Volume of Cable where in customer corporate policy insists on Closed Racks. The Racks manufactured out of formed steel frames & Profiles, welded and Powder coated with highest quality standards under stringent ISO 9001 | ISO 14001 | ISO 27001 | ISO 45001 Manufacturing & Quality management system to ensure highest quality product.

Standard for NHDC series Racks configuration will be all Steel CKD Design additionally supported depth wise by welding 6 no 4 folded profiles. Associated with Top cover having provision for Mounting Fan Modules and Unique Cable entry and Exit Cut outs to handle High density Cables, Front and Back perforated metal Dual door with lock & key and Plain/Vented dual side panels. Free standing with plinth

NHDC Racks are supplied with high density Cable Frames 2No of 6 Inch in 900 wide and 2 No of 8 Inch in 1000 Wide.

Available in 32RU ~ 52RU Variants with 800 , 1000, 1200 Depth configurations and 900,1000 width configurations.

We ensure all our products are made with utmost precision and high-quality raw materials. We have in-house standardised testing procedures that ensure we give you nothing but the best. In addition, our products are made according to the latest IT standards to match the dynamic pace.

Technical Specification

Technical Data:
Basic FrameSteel Folded
ConstructionCKD Type
Top & Bottom CoverBolted to Fame with Required Cut Outs
Front DoorLockable Perforated Dual Steel Door
Rear DoorLockable Perforated Dual Steel Door
19” Mounting AngleFormed Steel
Std. Equipment MountingDIN Std. 10 mm Sq. Slots
Standard FinishPowder coated
Standard ColourGrey & Off White OR Black
Standard MountingFree standing on Plinth
Rack StandardConforms to DIN 41494 or Equipment standard
Static Load1500 Kgs



Model Matrix & Dimensions
NHDC SeriesHhWww1Ddd1Plinth Height(mm)
32X900X800156132U90019”45180070044550/100
32X900X1000156132U90019”451100090058050/100
32X900X1200156132U90019”4511200110072550/100
32X1000X1000156132U100019”45180070044550/100
32X1000X1200156132U100019”4511200110072550/100
34X900X800165034U90019”45180070044550/100
34X900X1000165034U90019”451100090058050/100
34X900X1200165034U90019”4511200110072550/100
34X1000X1000165034U100019”45180070044550/100
34X1000X1200165034U100019”4511200110072550/100
36X900X800173936U90019”45180070044550/100
36X900X1000173936U90019”451100090058050/100
36X900X1200173936U90019”4511200110072550/100
36X1000X1000173936U100019”45180070044550/100
36X1000X1200173936U100019”4511200110072550/100
34X900X800182834U90019”45180070044550/100
38X900X1000182838U90019”451100090058050/100
38X900X1200182838U90019”4511200110072550/100
38X1000X1000182838U100019”45180070044550/100
38X1000X1200182838U100019”4511200110072550/100
40X900X800191640U90019”45180070044550/100
40X900X1000191640U90019”451100090058050/100
40X900X1200191640U90019”4511200110072550/100
40X1000X1000191640U100019”45180070044550/100
40X1000X1200191640U100019”4511200110072550/100
42X900X800200542U90019”45180070044550/100
42X900X1000200542U90019”451100090058050/100
42X900X1200200542U90019”4511200110072550/100
42X1000X1000200542U100019”45180070044550/100
42X1000X1200200542U100019”4511200110072550/100
44X900X800209444U90019”45180070044550/100
44X900X1000209444U90019”451100090058050/100
44X900X1200209444U90019”4511200110072550/100
44X1000X1000209444U100019”45180070044550/100
44X1000X1200209444U100019”4511200110072550/100
45X900X800213845U90019”45180070044550/100
45X900X1000213845U90019”451100090058050/100
45X900X1200213845U90019”4511200110072550/100
45X1000X1000213845U100019”45180070044550/100
45X1000X1200213845U100019”4511200110072550/100
48X900X800227148U90019”45180070044550/100
48X900X1000227148U90019”451100090058050/100
48X900X1200227148U90019”4511200110072550/100
48X1000X1000227148U100019”45180070044550/100
48X1000X1200227148U100019”4511200110072550/100
50X900X800236050U90019”45180070044550/100
50X900X1000236050U90019”451100090058050/100
50X900X1200236050U90019”4511200110072550/100
50X1000X1000236050U100019”45180070044550/100
50X1000X1200236050U100019”4511200110072550/100
52X900X800244952U90019”45180070044550/100
52X900X1000244952U90019”451100090058050/100
52X900X1200244952U90019”4511200110072550/100
52X1000X1000244952U100019”45180070044550/100
52X1000X1200244952U100019”4511200110072550/100

Features & Accessories

Features

  • Conforms to DIN 41494 or Equivalent EIA / ISO / EN Standard
  • Adjustable mounting depth
  • 4 No. Adjustable, 19" verticals with Punched 10mm Square Hole and Universal 12.7mm – 15.875mm – 15.875mm alternating hole pattern offers greater mounting flexibility, maximizes usable mounting space
  • Numbered U positions
  • State-of-the-art manufacturing methods provide the best product quality and fastest delivery in the industry
  • 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard)
  • Powder coated finish with Seven tank pretreatment process meeting IS.


Note:

  • Overall Height = Frame Height+Plinth
  • It is recommended to distribute the Load along with U space in the Rack
  • Dimension are in MM.


Accessories

H - Overall height

h - Usable height

W - Overall width

w - Usable width

w1 - Usable width Between MTG. Angles

D - Overall depth

d - Usable depth

d1 - Usable Depth Mounting Angle to Angle

Abbreviations
