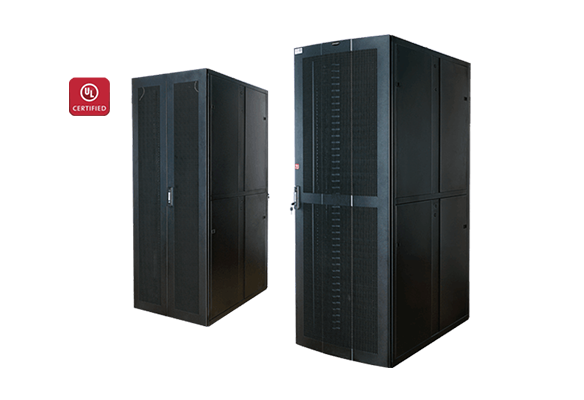

NRSe 800 Series

OVERVIEW

NRSe Series - Ultra rigid Enhanced Racks for high density application in data centers & server room. The Racks manufactured out of steel sheet punched, formed, welded and Powder coated with highest quality standards under stringent ISO 9001 | ISO 14001 | ISO 27001 | ISO 45001Manufacturing & Quality management system to ensure highest quality product.

Standard for Racks configuration will be welded ultra rigid frame with 4 No. Pillars of 14 Gauge steel sheet 6 folded profile welded to top and bottom ribbed /reinforced frame additionally supported depth wise by welding 6 No. depth rail 4 folded 75mm 16 Gauge profile. Associated with Top cover having provision for Mounting Exhaust Blower and Adjustable duct for free exhaust of Hot Air through false ceiling to PAC unit, Front Convex perforated steel door with lock & key and Back perforated /plain dual steel door with lock & key and Plain dual side panels. Free standing on plinth.

Available in 42RU ~ 52RUVariants with 1000 & 1200 Deep configurations and 800 width configurations.

Technical Specification

Technical Data:
Basic FrameSteel folded
ConstructionWelded
Top & Bottom CoverBolted to Frame with required cut outs.
Front DoorLockable Convex Perforated Steel Door
Rear DoorLockable Perforated / Plain Steel Dual Door
19” Mounting AngleFormed Steel
Std. Equipment MountingDIN Std. 10 mm Sq. Slots
Standard FinishPowder coated
Standard ColourTexture Black
Standard MountingFree standing on Plinth
Rack StandardConforms to DIN 41494 or equivalent standard
Static Load1500 Kgs



Model Matrix & Dimensions
NRSe SeriesHhWw/w2w1Ddd1Plinth Height(mm)
22U 800X1000111622U80019''/27”451100090072550/100
22U 800X1200111622U80019''/27”4511200110072550/100
24U 800X1000120524U80019''/27”451100090072550/100
24U 800X1200120524U80019''/27”4511200110072550/100
27U 800X1000133827U80019''/27”451100090072550/100
27U 800X1200133827U80019''/27”4511200110072550/100
30U 800X1000147130U80019''/27”451100090072550/100
30U 800X1200147130U80019''/27”4511200110072550/100
32U 800X1000156032U80019''/27”451100090072550/100
32U 800X1200156032U80019''/27”4511200110072550/100
34U 800X1000164934U80019''/27”451100090072550/100
34U 800X1200164934U80019''/27”4511200110072550/100
36U 800X1000173836U80019''/27”451100090072550/100
36U 800X1200173836U80019''/27”4511200110072550/100
38U 800X1000182838U80019''/27”451100090072550/100
38U 800X1200182838U80019''/27”4511200110072550/100
40U 800X1000191640U80019''/27”451100090072550/100
40U 800X1200191640U80019''/27”4511200110072550/100
42U 800X1000200542U80019''/27”451100090072550/100
42U 800X1200200542U80019''/27”4511200110072550/100
44U 800X1000209444U80019''/27”451100090072550/100
44U 800X1200209444U80019''/27”4511200110072550/100
45U 800X1000213845U80019''/27”451100090072550/100
45U 800X1200213845U80019''/27”4511200110072550/100
46U 800X1000218346U80019''/27”451100090072550/100
46U 800X1200218346U80019''/27”4511200110072550/100
47U 800X1000222747U80019''/27”451100090072550/100
47U 800X1200222747U80019''/27”4511200110072550/100
48U 800X1000227148U80019''/27”451100090072550/100
48U 800X1200227148U80019''/27”4511200110072550/100
50U 800X1000236050U80019''/27”451100090072550/100
50U 800X1200236050U80019''/27”4511200110072550/100
52U 800X1000244952U80019''/27”451100090072550/100
52U 800X1200244952U80019''/27”4511200110072550/100

Features & Accessories

Feature

  • Conforms to DIN 41494 or Equivalent EIA /ISO / EN / CEA Standard
  • Adjustable mounting depth
  • 4 No Adjustable, 19” verticals with Punched 10 mm Square Hole and Universal 12.7mm-15.875mm-15.875mm alternating hole pattern offers greater mounting flexibility, maximizes usable mounting space.
  • Numbered U positions
  • State-of-the-art manufacturing methods provide the best product quality and fastest delivery in the industry
  • 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard)
  • Powder coated finish with Seven tank pretreatment process meeting ASTM standard.


eNhancements

  • eNhanced Thermal management with Air Seal Kit and Blanking Panels & Bottom Brushed access eNhanced Grounding & Bonding
  • eNhanced Cable management
  • eNhanced for Alpha Numeric Rack Display system on Front Door
  • eNhanced for CAC or HAC
  • eNhanced for Roof Blowers with adjustable Chimney (400 to 1350 CFM)
  • eNhanced for Back Door Blowers (800 to 1950 CFM) (Optional)
  • eNhanced for Intelligent Locking and Rack Monitoring.


Note:

  • Overall Height = Frame Height+Plinth or Caster
  • It is recommended to distribute the Load along with U space in the Rack
  • Dimension are in MM.


Abbreviations

H - Overall height

h - Usable height

W - Overall width

w - Usable width

w1 - Usable width Between Front MTG. Angles

w2 - Overall Usable Width

D - Overall depth

d - Usable depth

d1 - Usable Depth From Mounting Angle to Angles
