OVERVIEW

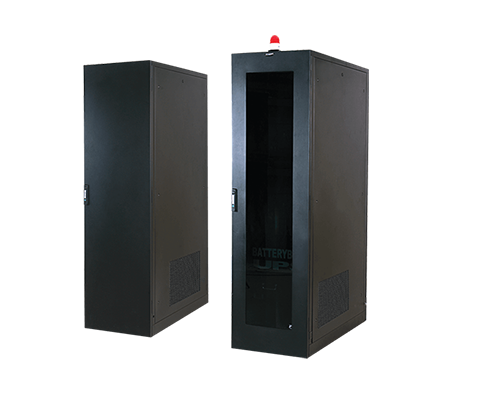

iRack Series, a Self Cooled, Self Powered & Self Contained Rack
Trend towards having Intelligent Infra Capsules on Premises at Banking & Insurance Sector, Warehouses, Manufacturing sector & Educational Institutions made the Rack manufactures to think on concept of iRack. Thanks to Technology, which made the concept a reality today
The Racks manufactured out of steel sheet punched, formed, welded and powder coated with highest quality standards under stringent ISO 9001 | ISO 14001 | ISO 27001 | ISO 45001 Manufacturing & Quality management system to ensure highest quality product.
Standard for Racks configuration will be welded ultra rigid frame with 4 No. Pillars of 14 Gauge steel sheet 6 folded profile welded to top and bottom ribbed /reinforced frame additionally supported depth wise by welding 6 No. depth rail 4 folded 75mm 16 Gauge profile. Front Glass door with lock & key and Back Metal door with lock & key and Plain dual side panels. Free standing on plinth.
To Complete intelligence in iRack NetRack integrate 3.5Kw/7Kw PAC Unit,with and without redundancy, UPS with Battery bank, Intelligent PDU for Power, Surveillance & environmental management, KVM & Console for server management, Intelligent Rack access for physical security will complete full fledged iRack Configuration.
iRack equipped with Air-seal Kit,Blanking panels, Brush models and panels for complete Airflow management.
Available in 42RU Variants with 1200 Depth Configurations and 600 & 800 Width Configurations.
Technical Specification
| Specifications | |
|---|---|
| Rack Load Capacity | 1000 KGS |
| Rack U Space | 34 U |
| Cooling Capacity | 3.5 Kw/7Kw |
| UPS Capacity | Available |
| UPS Back Up | Available |
| Rack Access Control | Available |
| Camera Based Surveillance | Available |
| Intelligent PDU | Available |
| Intelligent Climate Monitoring | Available |
| Analogue / Digital KVM | Available |
| Intelligent Asset Management | Available |
| Model Matrix & Dimensions | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| iRack Series | H | h | W | w | w1 | D | d | d1 | Plinth Height (MM) |
| 42U 600X1200 | 2005 | 42U | 600 | 19'' | 451 | 1200 | 1100 | 725 | 100 |
| 42U 800X1200 | 2005 | 42U | 800 | 19''/27'' | 451 | 1200 | 1100 | 725 | 100 |
Features & Accessories
Features
- Precision Cooling unit
- UPS & Battery Bank
- Intelligent PDU for Power
- Surveillance & environmental management
- KVM & Console for server management
- Intelligent Rack Access for physical security
- STS for Power redundancy
- Alert /alarm in the event of temp high or low
- Rack carefully designed and configured as self contained with minimal cold air losses and thermal short circuit
Note:
- Overall Height = Frame Height+Plinth
- It is recommended to distribute the Load along with U space in the Rack
- Dimension are in MM
Abbreviations
H - Overall height
h - Usable height
W - Overall width
w - Usable width
w1 - Usable width Between Front MTG. Angles
D - Overall depth
d - Usable depth
d1 - Usable Depth From Mounting Angle to Angle
