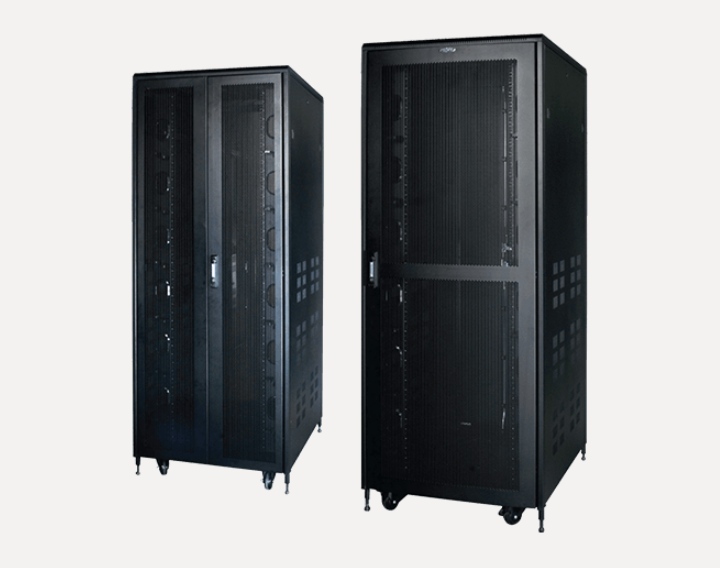

NRS 800 Series

OVERVIEW

NRS Series, Rigid Racks for Severs, Networking, AV, Telecom & lab application. Racks manufactured out of steel sheet punched, formed, welded and Powder coated with highest quality standard under stringent ISO 9001-2008 Manufacturing & Quality management system to ensure highest quality product.

Standard for racks configuration will be welded frame with 4 no pillars of 7 folded profile welded to top and bottom ribbed/ reinforced frame additionally supported depth wise by welding 6 no depth rail 4 folded profile. Associated with vented top cover with fan mounting provision front glass or perforated metal door with lock & key and back vented / perforated metal door with lock & key and partially vented or Plain side panels 1200 deep rack will be configured with dual side panel. Free standing on floor with 4 No casters wheels with 2 No with brakes and 2 Nos. without brakes & with levelers or plinth.

Available in 6RU~52RU Variants with 800,1000 & 1200 Depth configurations and 800 Width configurations.

Technical Specification

Basic FrameSteel folded
ConstructionWelded or CKD
Top & Bottom CoverBolted to Frame with Cable entry exit cut outs
Front DoorLockable Toughened Glass Door Or Lockable Perforated steel Door
Rear DoorLockable Steel Door – Plain/ Vented/ Perforated
19” Mounting AngleFormed Steel
Std. Equipment MountingDIN Std. 10 mm Sq. Slots
Standard FinishPowder coated
Standard ColourGrey & Off white OR Black
Standard MountingCaster wheels (2 with Brake & 2 without Brake)OR Levelers Or Plinth
Rack StandardConforms to DIN 41494 or equivalent standard
Static Load750 Kgs with casters 1250 Kgs with Levelers/Plinth





Model Matrix & Dimensions
NRS SeriesHhWw/w1DdCaster TypePlinth Height
(mm)
6U 800X8004116U80019”/27”800700TYPE-1—
6U 800X8004116U80019”/27”800700TYPE-1—
6U 800X10004116U80019”/27”1000900TYPE-1—
9U 800X8005449U80019”/27”800700TYPE-1—
9U 800X10005449U80019”/27”1000900TYPE-1—
12U 800X80067712U80019”/27”800700TYPE-1—
12U 800X100067712U80019”/27”1000900TYPE-1—
15U 800X80081015U80019”/27”800700TYPE-1—
15U 800X100081015U80019”/27”1000900TYPE-1—
17U 800X80089917U80019”/27”800700TYPE-1—
17U 800X100089917U80019”/27”1000900TYPE-1—
22U 800X800112122U80019”/27”800700TYPE-250/100
22U 800X1000112122U80019”/27”1000900TYPE-250/100
22U 800X1200112122U80019”/27”12001100TYPE-250/100
27U 800X800134327U80019”/27”800700TYPE-250/100
27U 800X1000134327U80019”/27”1000900TYPE-250/100
27U 800X1200134327U80019”/27”12001100TYPE-250/100
32U 800X800156532U80019”/27”800700TYPE-350/100
32U 800X1000156532U80019”/27”1000900TYPE-350/100
32U 800X1200156532U80019”/27”12001100TYPE-350/100
34U 800X800165434U80019”/27”800700TYPE-350/100
34U 800X1000165434U80019”/27”1000900TYPE-350/100
34U 800X1200165434U80019”/27”12001100TYPE-350/100
36U 800X800174336U80019”/27”800700TYPE-350/100
36U 800X1000174336U80019”/27”1000900TYPE-350/100
36U 800X1200174336U80019”/27”12001100TYPE-350/100
38U 800X800183238U80019”/27”800700TYPE-350/100
38U 800X1000183238U80019”/27”1000900TYPE-350/100
38U 800X1200183238U80019”/27”12001100TYPE-350/100
40U 800X800192140U80019”/27”800700TYPE-350/100
40U 800X1000192140U80019”/27”1000900TYPE-350/100
40U 800X1200192140U80019”/27”12001100TYPE-350/100
42U 800X800201042U80019”/27”800700TYPE-350/100
42U 800X1000201042U80019”/27”1000900TYPE-350/100
42U 800X1200201042U80019”/27”12001100TYPE-350/100
44U 800X800209944U80019”/27”800700TYPE-350/100
44U 800X1000209944U80019”/27”1000900TYPE-350/100
44U 800X1200209944U80019”/27”12001100TYPE-350/100
45U 800X800224845U80019”/27”800700TYPE-350/100
45U 800X1000224845U80019”/27”1000900TYPE-350/100
45U 800X1200224845U80019”/27”12001100TYPE-350/100
47U 800X800233747U80019”/27”800700TYPE-350/100
47U 800X1000233747U80019”/27”1000900TYPE-350/100
47U 800X1200233747U80019”/27”12001100TYPE-350/100
48U 800X800238148U80019”/27”800700TYPE-350/100
48U 800X1000238148U80019”/27”1000900TYPE-350/100
48U 800X1200238148U80019”/27”12001100TYPE-350/100
50U 800X800247050U80019”/27”800700TYPE-350/100
50U 800X1000247050U80019”/27”1000900TYPE-350/100
50U 800X1200247050U80019”/27”12001100TYPE-350/100
52U 800X800255952U80019”/27”800700TYPE-350/100
52U 800X1000255952U80019”/27”1000900TYPE-350/100
52U 800X1200255952U80019”/27”12001100TYPE-350/100

Features & Accessories

Features

  • Conforms to DIN 41494 or Equivalent EIA /ISO/ EN/CEA Standard
  • Adjustable mounting depth
  • 4 No Adjustable, 19” verticals with Punched 10mm Squarer Hole and Universal 12.7 mm-15.875 mm- 15.875 mm alternating hole pattern offers greater mounting flexibility, maximizes usable mounting space.
  • Numbered U positions
  • State-of-the art manufacturing methods provide the best product quality and fastest delivery in the industry
  • 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
  • Powder coated finish with Seven tank pretreatment process meeting ASTM standard
  • Grounding & Bonding Options
  • Fan module Mount Provision on top Cover

Accessories:

  • Cable Basket
  • Angle Pair
  • Ganging Kit
  • Fixed Shelf
  • Cantilever Shelf
  • Sliding Shelf
  • Key Board Shelf
  • Power Distribution Units
  • Cable Oragnisers
  • Fans and Fan Modules
  • Rack Ground Kit
  • Plinth
  • Casters
  • Levellers
  • Rack Stabilizing Kit

Note:

  • Overall Height = Frame Height+Plinth or Caster
  • Other models can be manufactured on request
  • It is recommended to distribute the Load along with U space in the Rack
  • Dimension are in MM


Accessories

H - Overall height

h - Usable height

W - Overall width

w - Usable width

D - Overall depth

d - Usable depth





DescriptionHeight (mm)
TYPE-165
TYPE-285
TYPE-3105
