OVERVIEW
Importance of Power Redundancy: In the landscape of ISO 9001, ISO 14001, ISO 27001, and ISO 45001 compliance, power redundancy stands as a critical pillar. Single power source devices are vulnerable to disruptions, jeopardizing operational continuity and regulatory adherence.
The Role of STS in Redundancy: While introducing a Safe Transfer Switch introduces another component, its reliability and switching time are pivotal. NetRack's STS is meticulously designed to minimize failure points and ensure seamless transitions.
Reliability of NetRack's STS: NetRack's STS stands as a testament to legendary reliability. Engineered with cutting-edge technology, it boasts unparalleled dependability, meeting the rigorous demands of modern industries.
Switching Time: A Crucial Metric: In the realm of power redundancy, switching time holds immense significance. NetRack's STS achieves a remarkable switching time of 5 milliseconds when synchronizing both power sources, ensuring minimal disruption during transitions.
Enhanced Redundancy with NetRack's STS: The Safe Transfer Switch by NetRack enhances redundancy without compromising reliability. It serves as a safeguard against power failures, safeguarding critical operations and regulatory compliance.
Key Features of NetRack's STS:
- Legendary Reliability: Built on a foundation of reliability, NetRack's STS guarantees an uninterrupted power supply.
- Ultra-Fast Switching: With a switching time of just 5 milliseconds, transitions between power sources are seamless and swift.
- ISMS ISO Compliance: Aligning with ISO standards, NetRack's STS ensures adherence to ISMS ISO 9001, ISO 14001, ISO 27001, and ISO 45001.
- Minimal Points of Failure: Designed to minimize points of failure, the STS maximizes operational uptime and resilience.
- Industry-Leading Technology: Leveraging state-of-the-art technology, NetRack's STS sets the standard for power redundancy solutions.
Applications of NetRack's STS:
- Data Centers: Critical data operations demand uninterrupted power supply, making NetRack's STS indispensable in data center environments.
- Healthcare Facilities: Patient care relies on continuous power, underscoring the importance of STS in healthcare facilities.
- Manufacturing Plants: Production lines require stable power sources to prevent disruptions, positioning NetRack's STS as a cornerstone of manufacturing resilience.
- Financial Institutions: Uninterrupted operations are paramount in financial institutions, where NetRack's STS safeguards against downtime and data loss.

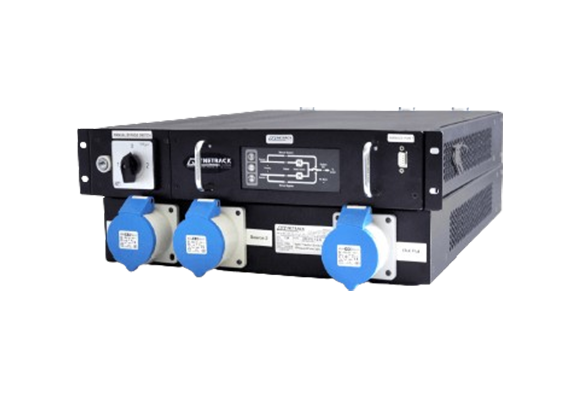

Technical Specification
| Model : NR-STS-1-2-16 & NR-STS-1-2-32 | |
|---|---|
| Input/Output | |
| Nominal Voltage | 230/240V AC(1PH+N) |
| Voltage Tolerances | +/-15% |
| Frequency Tolerances | Wide band - 40-70 Hz |
| Power Capacity | 16A/32A |
| No.of Switching Poles | 2 Poles ( Phase + Neutral) |
| Overloaded Capacity | 110% for 1Hour 150% for 1 Minute 200% for 10 Seconds 1000% for 100Msec |
| Duty | Continuous |
| Load Power Factor Range | 0.6 to unity Leading or Lagging |
| Controller | 32-bit DSP |
| Switch | |
|---|---|
| Tranfer | < 5 ms in sync & < 15 ms in No Sync |
| Manual Bypass | Yes |
| Efficiency (Ref.IEC 60146-1-1) (At full load & Nominal Input Voltage) | > 98 % |
| Environmental | |
|---|---|
| Acoustic noice level from 1 meter (Ref. ISO 3746) | <= 45 dBA |
| Operational temperature | 0 to 40 Deg C |
| Storage temperature | 0 to 70 Deg C |
| Relative humidity | Up to95% (Non condensing) |
| Altitude | < 1000 meters above sea level (without de-rating altitude) |
| Physical | |
| Enclosure protection | IP - 20 |
| Cooling | Natural |
| Color | RAL 7016 Texture |
| Dimention | 2U (Width - 450mm X depth - 485mm X height - 88.5mm) |
| Installation | Rack mountable |
| User Interface | |||||
|---|---|---|---|---|---|
| Indications | Source 1 Priority | Source 1 ON | Of source 1 Source 2 ON | Output ON | Manual by of source 1 |
| Source 2 Priority | Source 2 ON | Source 2 SW (Feeding) | No Sync | Manual by of source 2 | |
| Fault Indication | |||||
| Socket | |||
|---|---|---|---|
| Description | Industrial Socket : IEC 30932A-2P+E | ||
| Socket 1 | Socket 2 | Socket 3 | |
| Source 1 | Source 2 | Out Put | |
| Other Features | |
|---|---|
| RS 485 MODBUS (Optional) | |
